O Gauge 3-Rail Integrated Railroad Crossing Kit

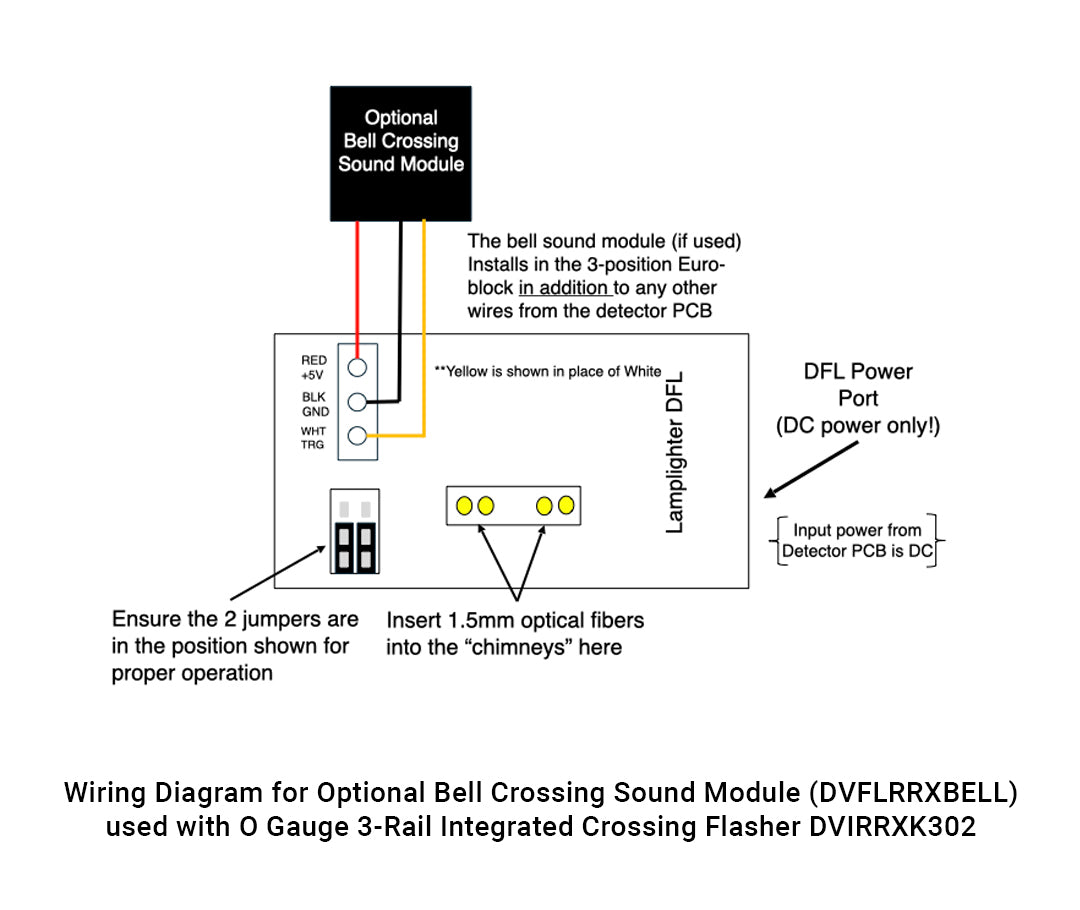

This 1/48th scale RR Crossing is part of a prototypical fiber optic lighting system that provides the ability to have a fully integrated RR Crossing system with insulated outside rail block activation (and an optional bell sound, available separately).

It is designed to be used with our dedicated crossing flasher box. Each crossing flasher has a single flashing face and comes with 4ft of 1.0mm fiber attached to it.

To mount the crossing flashers, just drill a 1/4" hole in the layout, insert the fibers and then the tubing to the desired depth. The size of this hole will provide a snug fit for the RR Crossing post, keeping it from swiveling around.

Power the 3-rail O gauge crossing Flashers using your existing accessory AC power. The kit includes a separate circuit board that electrically isolates the track from the crossing flasher, so when you have a short on the track the crossing flasher is completely unaffected!

Features of the Dwarvin O Gauge 3-Rail Crossing Flashers

• Activated by insulated outside rail.
• Includes separate detector circuit to electrically isolate the track from the controller.
• Built to true 1:48th scale dimensions (O scale).
• Ideal for any modeling era.
• Can be powered on existing accessory AC power.
• Controller & detector all use Euro-Style connectors for easy installation.
• Easy installation, under 20 minutes from start to finish! Requires drilling 2 holes (for the crossbucks).
• Individual Crossbucks available separately (you never have to buy a whole kit to repair a damaged crossbuck!).

Application:

Compatible with multiple tracks (just connect the insulated rail from the other tracks to the detector PCB.

Dimensions:

• Height: 5” (2.87” to underside of lights)
• Width: 1-1/4”
• Diameter of Fiber: 1.5mm
• Length of Fiber: 4ft

The Dwarvin Crossing Flashers are the best value on the market! Other O gauge crossing flashers cost upwards of $175.00!
